Wiring the Power Inputs

Please follow the steps below to insert the power wire.

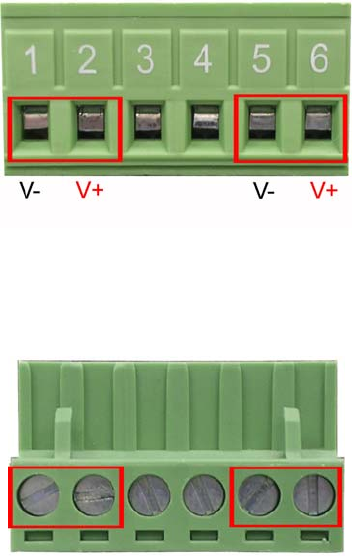

Insert the positive and negative wires into the V+ and V- contacts on the terminal block

connector.

Tighten the wire-clamp screws for preventing the wires from loosing.
