Hardware Description

In this paragraph, the Industrial switch’s hardware spec, port, cabling information, and

wiring installation will be described.

Physical Dimension

4-Port PoE + 1-Port TP Industrial Fast Ethernet Switch dimension (W x D x H) is

30mm x 95mm x 140mm

Front Panel

The Front Panel of the 4-Port PoE + 1-Port TP Industrial Fast Ethernet Switch is

shown as below:

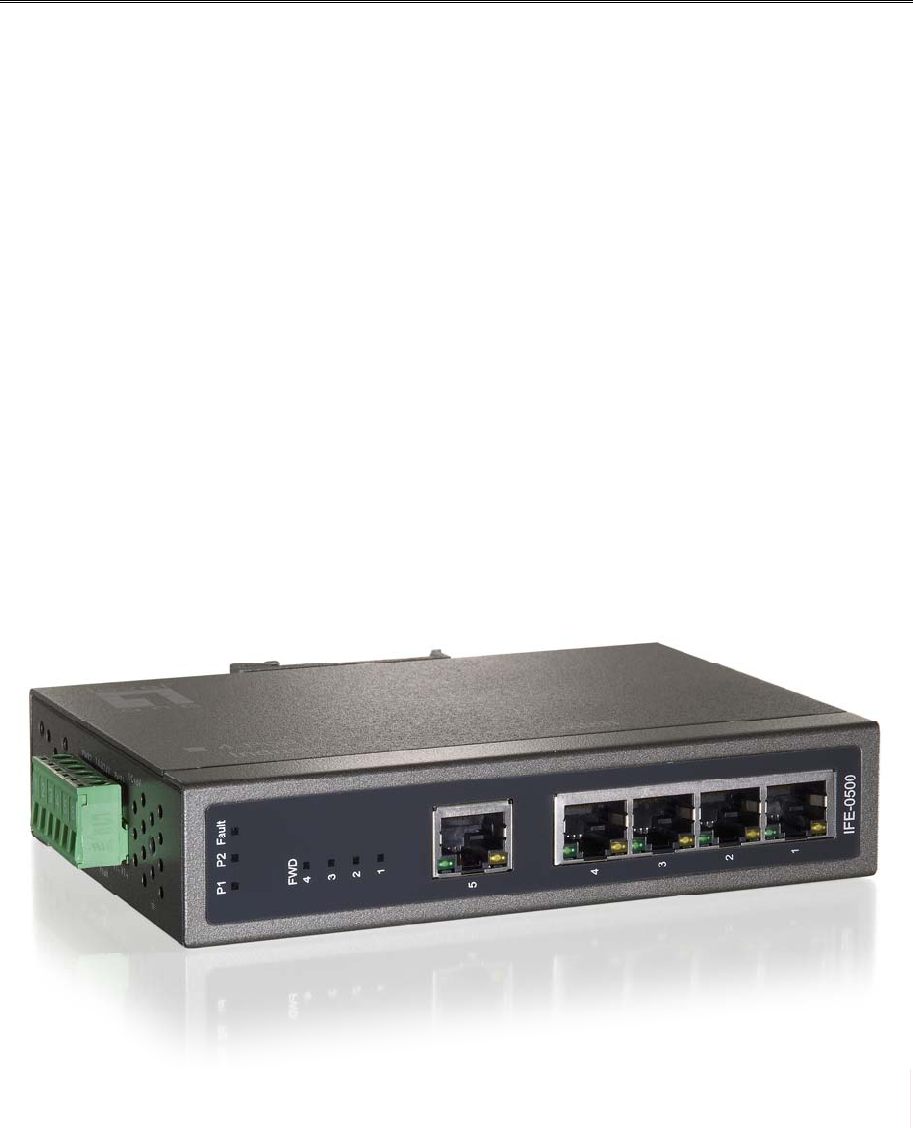

Front Panel of the IFE-0500 Industrial Fast Ethernet Switch
